Hubbell Lighting FML-14

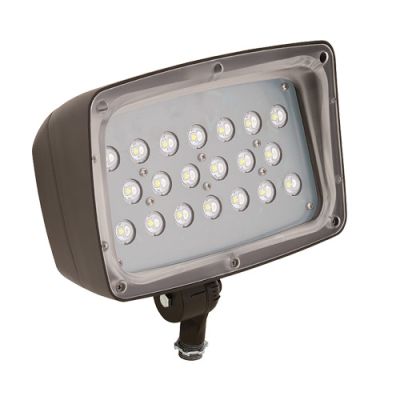

Hubbell reg; Outdoor Lighting Areamaster trade; FML-14 AMLED Floodlight Fixture,) LED Lamp, 100 W Fixture, 120/277 VAC, Bronze Housing
Outdoor Lighting Accessories
7327615 FML-14
Hubbell Lighting
$0.00 / ea

Hubbell Lighting FML-14
  • Amperage Rating: 1050
  • Color Rendering Index (CRI): 67
  • Color Temperature: 5000
  • Dimensions: 6.68 in H x 9.63 in W x 4.53 in D
  • Enclosure Type: IP66
  • Fixture Wattage: 100
  • Housing Finish: Bronze
  • Housing Material: Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 53
  • Lens Type: Tempered Glass
  • Lumens: 4285
  • Mounting Type: Surface
  • Series: AMLED
  • Voltage Rating: 120/277
Hubbell® Outdoor Lighting Areamaster™ Floodlight Fixture, Series: AMLED, 120/277 VAC, 100 W Fixture, 1050 mA, LED Lamp, 53 W Lamp, 5000 K Color Temperature, 67 CRI, Tempered Glass Lens, 4285 Lumens, IP66 Enclosure, Surface Mounting, Aluminum Housing Material, Bronze Housing Finish, 6.68 in H x 9.63 in W x 4.53 in D Dimensions
QTY
Add to Wishlist
  • Features
  • Padded, insulated handlebar
  • Vented housing isolates LED module from driver maximizing product life and performance
  • High impact UV stabilized acrylic outer lens protects LEDs and allows for cleaning and debris removal
  • Adjustable mounting knuckle with 1/2 in NPS threaded stem
  • Wide Beam Pattern
  • 1760 max Candle Power
  • Dark Bronze housing finish
  • Die Cast Aluminum housing
  • NEC/CEC versions available with a total of three (3) 3/4 in NPT entries with integral bushings
  • Terminal block (screw type for secure connection) can accept UL/CSA 24 to 10 AWG and IEC 0.2 - 4 sq-mm
  • Copperfree (4/10 of 1% max) aluminum housing and lens door
  • Silicone rubber gasket, metalized high reflectance finish reflector, zinc plated steel yoke mount, stainless steel bolts, aluminum close up plugs
  • Architectural bronze polyester housing, lens cover and yoke mount
  • -40 to 65 deg C ambient and 75 to 90 deg C supply wire temperature
  • 50/60 Hz frequency
  • 0.5 THD
  • >0.98 power factor
  • Luminaires for use in hazardous locations
  • NEC/CEC standard class I, division 2, Groups A, B, C, D, class I, zone 2 group IIC, class II, division 1, Groups E, F, G, class II division 2, Groups F, G, class III, ATEX/IECE standard Zones 2 and 22,Ex II 3 GD, EPL Gc and Dc, Ex nA IIC, Ex tc IIIC, zone 21, Ex II 2 D, EPL Db, Ex tb IIIC
