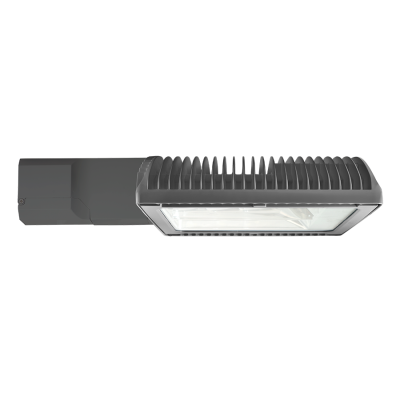

RAB Lighting RWLED3T78/PCT

RAB RWLED3T78/PCT Type III Standard Universal Adapter Roadway Light, (6) LED Lamp, 78 W Fixture, 120/208/240/277 VAC, Bronze/Polyester Powder Coated Housing
Compact LED Lamps
7281519 RWLED3T78/PCT
RAB Lighting
$0.00 / ea

RAB Lighting RWLED3T78/PCT
  • Amperage Rating: 0.66/0.41/0.35/0.3
  • Average Life: 100000
  • Ballast Type: Class 2/Constant Current
  • Color Rendering Index (CRI): 67
  • Color Temperature: 5100
  • Dimensions: 24.4 in L x 15 in W x 4.5 in H
  • Enclosure Type: IP66
  • Fixture Wattage: 78
  • Housing Finish: Bronze/Polyester Powder Coated
  • Housing Material: Die Cast Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 78
  • Lens Type: Specular Polycarbonate
  • Light Color: Cool White
  • Lighting Technology: Multi-Chip
  • Lumens: 6911
  • Mounting Type: Arm
  • Number of Lamps: 6
  • Series: RWLED
  • Type: Type III Standard Universal Adapter
  • Voltage Rating: 120/208/240/277
RAB Roadway Light, Type III Standard Universal Adapter, Series: RWLED, 120/208/240/277 VAC, 78 W Fixture, 0.66/0.41/0.35/0.3 A, Multi-Chip Lighting Technology, LED Lamp, 78 W Lamp, 6 Lamps, 100000 hr Average Life, Cool White Light, 5100 K Color Temperature, 67 CRI, Class 2/Constant Current Ballast, Specular Polycarbonate Lens, 6911 Lumens, IP66 Enclosure, Arm Mounting, Die Cast Aluminum Housing Material, Bronze/Polyester Powder Coated Housing Finish, 24.4 in L x 15 in W x 4.5 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Replaces 250 W metal halide roadway fixtures
  • 27 years lifespan dramatically reduces maintenance and relamping costs
  • Compatible with standard roadway arms
  • Easy access electrical compartment makes wiring fast and secure
  • No photocell, no bi-level, no dimming
  • Universal adapters for 1 in, 1-1/4 in, 1-1/2 in and 2 in OD pipe included
  • Industry leading 5G vibration rating per ANSI C136.31
  • Suitable for wet locations as a downlight
  • The minimum starting temperature is -40 deg C
  • Superior thermal management design with external advanced fins provides maximum operational life, even in high ambient temperature environments
  • Die cast aluminum housing, lens frame and mounting arm, specular vacuum metalized polycarbonate
  • High temperature silicone gaskets, mercury and UV-free
  • Environmentally friendly polyester powder coatings are formulated for high durability and longer color and contains no VOC or toxic heavy metals
  • 7-step MacAdam ellipse binning to achieve consistent fixture to fixture color
