Wattstopper HBEM3
WattStopper HBEM3 Extender Module, For Use With 24 VDC 1 A 1200 sq-ft High Bay Passive Infrared Occupancy Sensor, Bracket/Fixture Mount, 35 deg C Operating Temperature, 1 x 108 Operating Cycles, 95% RH Non-Condensing Environmental Condition, Plastic
Lighting Control Accessories
6872081
HBEM3
Wattstopper
$0.00
/ ea
- Color: White
- Dimensions: 1.24 in L
- Material: Plastic
- Series: HBEM
- Specifications: Bracket/Fixture Mount, 35 deg C Operating Temperature, 1 x 108 Operating Cycles, 95% RH Non-Condensing Environmental Condition
- Suitable For Use With: 24 VDC 1 A 1200 sq-ft High Bay Passive Infrared Occupancy Sensor

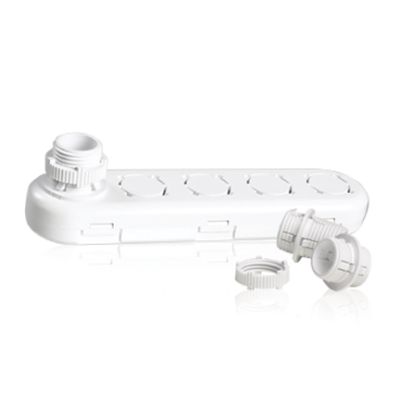

This Extender Module attaches a High Bay (HB) Occupancy Sensor Module to the side of a fixture. With the extender module attached, the HB sensor can be adjusted up or down to ensure its view is not blocked by the fixture.
- Features
- Adjustable snap-on extender module
- Snap-on chase nipples facilitate easy side or back mount installations
- Connects to metal or plastic fixtures via included snap-in chase nipples
- Snaps together to protect sensor and fixture wires
- 4-3/4 in maximum extension
- 0.63 in ID
- 0.82 in OD thread
- 0.88 in for connection to plastic fixture, 1.24 in for connection to metal fixtures
- Automatic on/Off control output
