Woodhead 29W76MB

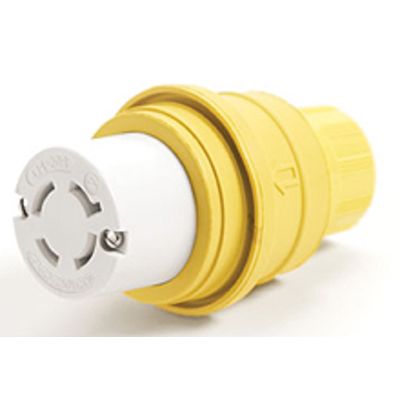

Woodhead reg; Watertite reg; 29W76MB 130147 3-Phase Female Connector With Locking Blade, 480 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Plugs Connectors
603994
29W76MB
Woodhead
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 7/16 to 1-7/64
- Dimensions: 2-3/4 in Dia x 4-3/4 in L
- Enclosure: IP67
- Grade: Industrial
- Material: Rubber
- Nema Rating: L16-30
- Number of Poles: 3
- Number Of Wires: 4
- Series: 130147
- terminal type: Screw
- Type: 3-Phase Female
- Voltage Rating: 480
Woodhead® Watertite® Connector, 3-Phase Female, Series: 130147, 480 VAC, 30 A, 3 Pole, 4 Wires, L16-30 NEMA Rating, Industrial Grade, IP67 Enclosure, 7/16 to 1-7/64 in Diameter Cord, Screw Terminal, Rubber, Yellow, 2-3/4 in Dia x 4-3/4 in L Dimensions
- Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cord without damaging the cord
- Nickel plated brass plug blade and connector contact
- NEoTEX® paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
