Legrand L620C

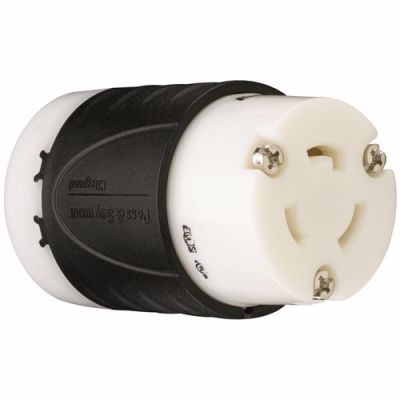

Pass & Seymour Turnlok L620-C Locking Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Plugs Connectors
32040
L620C
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Black/White
- Cord Diameter: 0.39 to 1.15
- Dimensions: 2.2 in Dia x 3.33 in L
- Enclosure: IP20
- Grade: Industrial
- Horsepower: 2
- Material: Nylon
- Nema Rating: NEMA L6-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Voltage Rating: 250
Turnlok Connector 3wire 20amp 250volt
- Features
- Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
- Industrial strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact and corrosion resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber
- Industrial specification grade locking device
- 2200 VAC minimum dielectric strength voltage
- 18 to 10 AWG wire size
