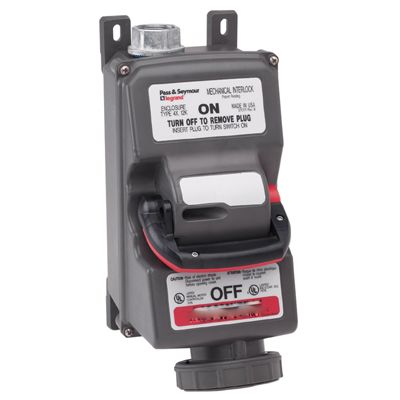

Legrand PS4100MIR7W

Pass & Seymour PS4100MIR7-W 3-Phase Non-Fusible Watertight Mechanical Interlock Receptacle, 480 VAC, 100 A, 3 Poles, 4 Wires
Pin and Sleeve Devices
574274 PS4100MIR7W
Legrand
$0.00 / ea

Legrand PS4100MIR7W
  • Amperage Rating: 100
  • Color: Black
  • Dimensions: 15
  • Enclosure: NEMA 4X/12K/IP67
  • Hub Size: 1-1/2
  • Material: Thermoplastic
  • Mounting: Threaded
  • Number of Poles: 3
  • Number Of Wires: 4
  • Power Rating: 50
  • Type: 3-Phase Non-Fusible Watertight
  • Voltage Rating: 480
Triple pole, Four wire, Non-Fusible Mechanical Interlock Receptacle. 100 amp, 3, 480 vac.
QTY
Add to Wishlist
  • Features
  • Top or bottom feed offer installation flexibility and eliminate the need for drilling and plugging that may nullify the NEMA 4X enclosure rating
  • Unit shipped with no holes drilled
  • A top and bottom feed spot drill is provided for locating hole saw or knockout
  • End user decides at installation whether top or bottom feed is appropriate
  • No closure plug kits required
  • Impact, chemical resistant, non-conductive retaining screw, brass male/female contacts
  • Round portable service cord mounting
  • North American watertight
  • 18 AWG wire size
