Legrand PS40MBG
Pass & Seymour PS40MBG 16 Series Male In-Line Connector, 600 VAC, 400 A, 1 Poles, Green
Pin and Sleeve Devices
6920447
PS40MBG
Legrand
$0.00
/ ea
- Amperage Rating: 400
- Color: Green
- Dimensions: 6-7/8 in L
- Grade: Commercial/Industrial
- Material: Thermoplastic Elastomer
- Nema Rating: NEMA 3R/4
- Number of Poles: 1
- Series: 16 Series
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Male
- Voltage Rating: 600

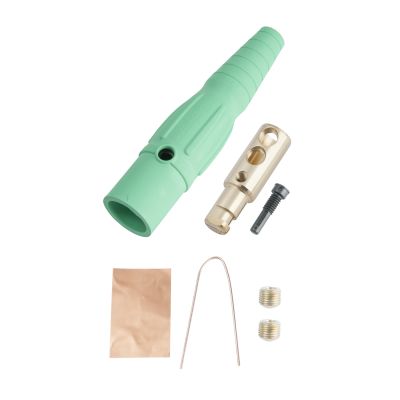

Male Cam Device Plug, 400A 600V, Green
- Features
- Thermoplastic elastomeric housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce splaying
- 2/0 to 4/0 AWG wire
- 45 deg C maximum temperature rise
- 2200 VAC minimum dielectric withstand voltage
- Plated steel terminal screw
- Cam-type plug
- Individual conductor, type SC, SCE, SCT or W cord type
