Woodhead 095106204

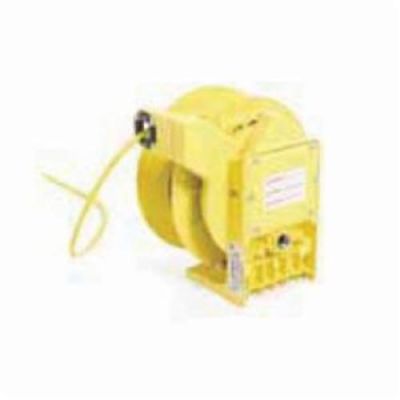

Woodhead reg; 095106204 Industrial Duty Cable Reel, 600 VAC, 14 A, 30 to 40 ft L Cord, 12/4 to 10/4 AWG Conductor
Cord, Cable and Hose Reels
298948
095106204
Woodhead
$0.00
/ ea
- Amperage Rating: 14
- Color: Yellow
- Conductor size: 12/4 to 10/4
- Cord Length: 30 to 40
- Dimensions: 15.9 in L x 13.5 in W x 12.93 in D
- Reel Material: Aluminum
- Type: Industrial Duty
- Voltage Rating: 600
Woodhead® Cable Reel, Industrial Duty, 600 VAC, 14 A, 30 to 40 ft Cord, 12/4 to 10/4 AWG Conductor, Aluminum Reel, Yellow, 15.9 in L x 13.5 in W x 12.93 in D
- Features
- NEMA 4 rating provides protection to water or dust, indoor and out
- Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
- Design prohibits annoying lock out when cable is fully extended
- Containerized main spring allow for safe, simple handling and replacement
- Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
- 4 lb retraction weight
- 1 in NPT primary cord entry
- Yellow powder coat finish
- Cast aluminum reel
