NSI IPCS2540

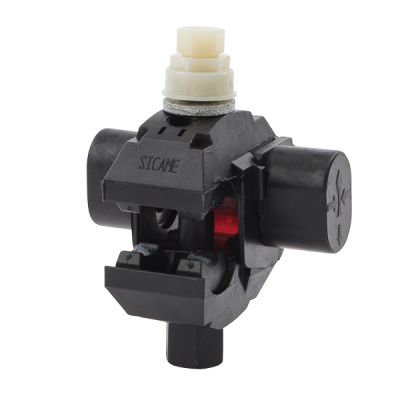

NSI EASY-TAP™ IPCS2540 IPCS Series Dual Rated Piercing Insulated Connector, 1 AWG to 250 kcmil Solid/Stranded Conductor, Thermoplastic
Lug Mechanical Connectors
7565408
IPCS2540
NSI
$0.00
/ ea
- Color: Black
- Conductor size: 1 AWG to 250 kcmil
- Conductor Type: Solid/Stranded
- Dimensions: 2.6 in L x 2.2 in W x 3.5 in H
- Material: Thermoplastic
- Mounting Type: Clamping
- Series: IPCS Series
- Specifications: 405 (Cu) to 315 (Al) A, 4/0 to 4 AWG Tap Size, 1-Bolt
- Temperature Rating: 90
- Type: Dual Rated
- Voltage Rating: 600
NSI EASY-TAP™ Piercing Insulated Connector, Dual Rated, Series: IPCS Series, Solid/Stranded Conductor, 1 AWG to 250 kcmil Conductor, 600 VAC, 405 (Cu) to 315 (Al) A, 4/0 to 4 AWG Tap Size, 1-Bolt, 90 deg C, Clamping Mount, Thermoplastic, Black, 2.6 in L x 2.2 in W x 3.5 in H
- Features
- Safe to use, versatile and reliable
- No need to strip wire and totally insulated
- No tape or cover needed
- No contact at any point with a live part
- Can be installed on energized conductors
- No spacer required between connections
- Exclusive turbo spacer keeps tap side open while main conductor is being tightened
- No need for a third hand to install
- Watertight and corrosion-free
- Connection sealed by a rubber grommet
- No migration of water
- No contamination between main and tap
- Connectors handle a large wire range of 14 AWG to 750 kcmil
- Double shear head bolts ensure perfect connection every time hot spots eliminated
- All sizes can be installed on energized main conductor however the tap must not be under load
- Easy to install and no special tools required
- For copper to copper, copper-to-aluminum and aluminum to aluminum applications
- Not recommended for use with extra flexible cables, not approved for submersible applications
- 4 sizes are approved for use with bare wire (from 10 to 4/0 AWG) these connectors come
- With a blue insert which re creates the insulation and avoids any damage to the conductor
