NSI AL-P2-P2
NSI Connector Bloks™ AL-P2-P2 Splicer/Reducer Power Distribution Block, 600 VAC, 620 A, 1 Poles, 6 AWG to 350 kcmil Wire, Aluminum
Ferrules
7149761
AL-P2-P2
NSI
$0.00
/ ea
- Amperage Rating: 620
- Color: Black
- Dimensions: 5.5 in L x 2.9 in W x 3.2 in H
- Material: Aluminum
- Number of Poles: 1
- Primary Connections/Pole: 2
- Secondary Connection/Pole: 2
- Type: Splicer/Reducer
- Voltage Rating: 600
- Wire size: 6 AWG to 350 kcmil

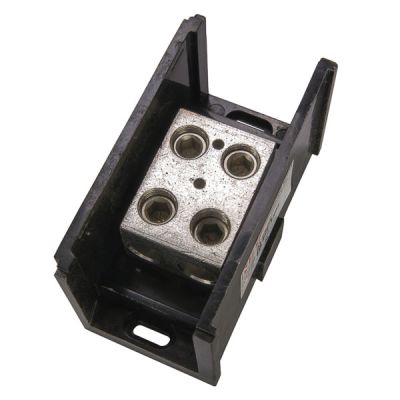

Power Distribution Block (2) 350 MCM-6 AWG Primary (2) 350 MCM-6 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
- Features
- 2 mounting holes
- Power distribution blocks are made of high strength, high conductivity material
- Mounted in a high strength glass filled polyester base
- Each block can stand alone or combine with other blocks to form a multi-block set
- 4 terminals
- Glass filled polyester base
- Large size
- (2) 6 AWG to 350 kcmil line, (2) 6 AWG to 350 kcmil load
