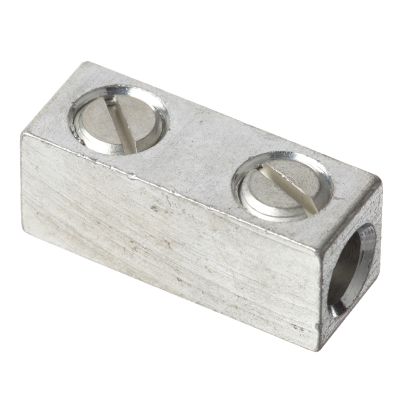

Panduit SR-2-XY
Panduit Pan-Lug SR-2-XY SR Series Dual Rated Mechanical Splicer/Reducer Connector, 14 to 2 AWG, 14 to 10 AWG Solid/Stranded Aluminum/Copper Conductor, Aluminum
Butt Splice Connectors
6814831
SR-2-XY
Panduit
$0.00
/ ea
- Conductor size: 14 to 2 AWG, 14 to 10 AWG
- Conductor Type: Solid/Stranded Aluminum/Copper
- Dimensions: 1.38 in L x 0.5 in W x 0.56 in H
- Finish: Tin Plated
- Material: Aluminum
- Series: SR Series
- Specifications: 0.63 in L Wire Strip
- Temperature Rating: 90
- Type: Dual Rated
- Voltage Rating: 600
Panduit Pan-Lug Mechanical Splicer/Reducer Connector, Dual Rated, Series: SR Series, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG, 14 to 10 AWG Conductor, 600 VAC, 0.63 in L Wire Strip, 90 deg C, Aluminum, Tin Plated, 1.38 in L x 0.5 in W x 0.56 in H
- Features
- Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Tin plated to inhibit corrosion
- Rounded bottoms to facilitate taping
- Solid center barrier prevents contact of dissimilar metal conductors
