Panduit SCL2-Q

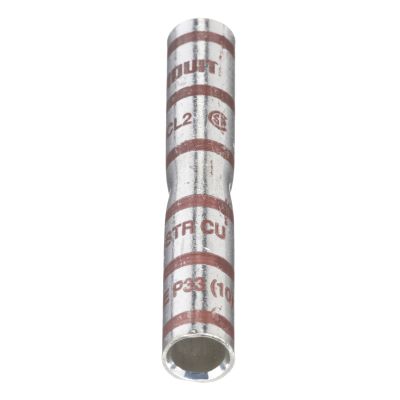

Panduit Pan-Lug SCL2-Q Compression Butt Splice, 2 AWG Conductor, 2.62 in L, Beveled/Long Seamless/Standard Barrel, Copper, Brown
Butt Splice Connectors
29485
SCL2-Q
Panduit
$0.00
/ ea
- Barrel Size: 0.31 in ID x 0.42 in OD
- Barrel Type: Beveled/Long Seamless/Standard
- Color: Brown
- Conductor size: 2
- Conductor Type: Stranded Copper
- Finish: Tin Plated
- Length: 2.62
- Material: Copper
- Series: SCL
- Specifications: 1-1/4 in L Wire Strip
- Temperature Rating: 90
- Voltage Rating: 35
Panduit Pan-Lug Compression Butt Splice, Series: SCL, Stranded Copper Conductor, 2 AWG Conductor, 2.62 in Length, Beveled/Long Seamless/Standard Barrel, 0.31 in ID x 0.42 in OD Barrel, 35 kV, Specifications: 1-1/4 in L Wire Strip, 90 deg C, Copper, Brown, Tin Plated
- Features
- Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin-plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull-out strength and electrical performance
- Premium pull out strength
