Wire & Cable 57021302

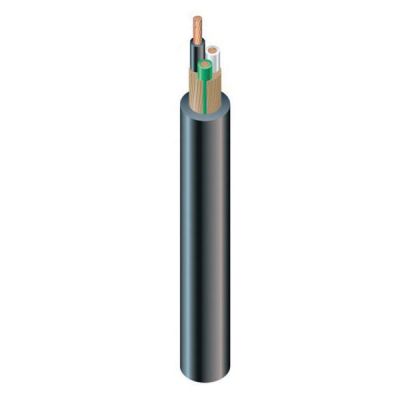

American Mustang reg; 57021302 Type SOOW Flexible Cord, 600 VAC, (4) 10 AWG Bare Stranded Copper Conductor, 1000 ft L
Portable Cord
7068628
57021302
Wire & Cable
$0.00
/ ea
- Amperage Rating: 25
- Conductor size: 10
- Conductor Type: Bare Stranded Copper
- Insulation Material: EPDM
- Jacket Color: Yellow
- Jacket Material: Chlorinated Polyethylene
- Length: 1000
- Number of Conductors: 4
- Outside Diameter: 0.72
- Strands: 104
- Temperature Rating: 105
- Type: Type SOOW Flexible
- Voltage Rating: 600
American Mustang Cord, Type SOOW Flexible, 600 VAC, 25 A, 4 Conductors, Bare Stranded Copper Conductor, 10 AWG Conductor, 0.72 in OD, 1000 ft Length, 104 Strands, EPDM Insulation, Chlorinated Polyethylene Jacket, Yellow Jacket, 105 deg C
- Features
- Superior tensile strength, elongation and aging characteristics
- Provides premium oil, acid and water resistance
- High flexibility and excellent abrasion resistance
- Southwire® type SOOW flexible cords are manufactured using bare flexible stranded class m or class k copper conductors, and heat, moisture and oil resistant EPDM rubber insulation
- The insulated conductors are cabled with rubber fillers, with a full cotton serve or paper separator wrapped around the assembly for improved tensile strength
- A heat, moisture and oil-resistant flexible CPE jacket is extruded over the assembly to complete the construction
- Sizes 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
- Black, white, red, green conductor color sequence
- Abrasion/acid/oil/water resistant
