Wire & Cable 57020802

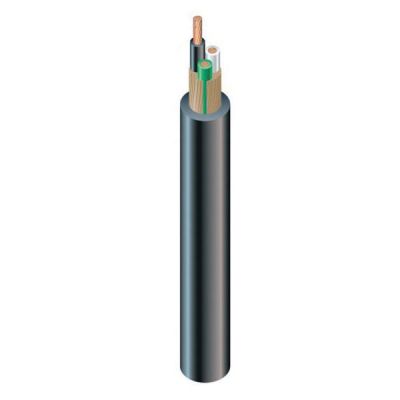

American Mustang reg; 57020802 Type SOOW Flexible Cord, 600 VAC, (3) 14 AWG Bare Stranded Copper Conductor, 1000 ft L
Portable Cord
7068620
57020802
Wire & Cable
$0.00
/ ea
- Amperage Rating: 18
- Conductor size: 14
- Conductor Type: Bare Stranded Copper
- Insulation Material: EPDM
- Jacket Color: Yellow
- Jacket Material: Chlorinated Polyethylene
- Length: 1000
- Number of Conductors: 3
- Outside Diameter: 0.534
- Strands: 41
- Temperature Rating: 105
- Type: Type SOOW Flexible
- Voltage Rating: 600
American Mustang Cord, Type SOOW Flexible, 600 VAC, 18 A, 3 Conductors, Bare Stranded Copper Conductor, 14 AWG Conductor, 0.534 in OD, 1000 ft Length, 41 Strands, EPDM Insulation, Chlorinated Polyethylene Jacket, Yellow Jacket, 105 deg C
- Features
- Superior tensile strength, elongation and aging characteristics
- Provides premium oil, acid and water resistance
- High flexibility and excellent abrasion resistance
- Southwire® type SOOW flexible cords are manufactured using bare flexible stranded class m or class k copper conductors, and heat, moisture and oil resistant EPDM rubber insulation
- The insulated conductors are cabled with rubber fillers, with a full cotton serve or paper separator wrapped around the assembly for improved tensile strength
- A heat, moisture and oil-resistant flexible CPE jacket is extruded over the assembly to complete the construction
- Sizes 18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
- Black, white, green conductor color sequence
- Abrasion/acid/oil/water resistant
