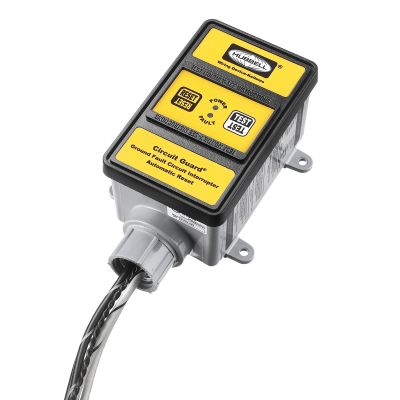

Hubbell Wiring GFHW13105
Wiring Device-Kellems Circuit Guard GFHW13105 3-Wire Automatic Multi-Strand Fabricated Hard Wired GFCI, 120 VAC, 30 A, 3600 W Power Rating, NEMA 4X Enclosure, Thermoplastic
Portable Cord
5324103
GFHW13105
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Dimensions: 24 in L
- Enclosure: NEMA 4X
- Material: Thermoplastic
- Power Rating: 3600
- Temperature Rating: -30 to 150
- Type: 3-Wire Automatic Multi-Strand Fabricated
- Voltage Rating: 120
Power Protection Products, Hard Wired GFCI, Industrial/Commercial, No Output, 30A 120V AC, 4-6 mA Trip Level, Yellow.
- Features
- Automatically energizes or sets the GFCI for use once power is applied to the circuit
- After a ground fault condition, unit must be reset by pushing the reset button
- This feature eliminates the need for the unit to be reset each time the power is turned ON
- Automatic reset is ideal where temporary power failure is likely and undesirable such as waste water treatment plants, portable signs and some pump applications
- Offers a 4 to 6 mA trip level
- Green light illuminates when unit has power and no ground fault is present
- Red light begins blinking when a ground fault is detected and the output power is interrupted
- Without alarm
