Littelfuse LFG60015-3CDINR

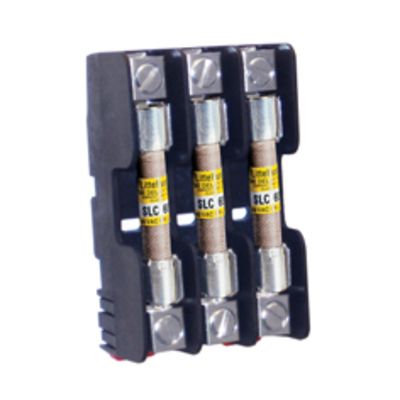

Littelfuse POWR-GARD LFG60015-3CDINR Non-Indicating Fuse Block, 600 VAC, 15 A, Class G, 14 to 10 AWG Cu Wire, 3 Poles
Distribution Blocks
7705280
LFG60015-3CDINR
Littelfuse
$0.00
/ ea
- Amperage Rating: 15
- Class: G
- Connection Type: Box Lug
- Dimensions: 3 in H x 2.36 in W x 1.4 in D
- Fuse Diameter: 0.406
- Fuse Length: 1.311
- Mounting Type: Bolt-In/DIN Rail
- Number of Poles: 3
- Series: LFG
- Suitable For Use With: Time Delay Current Limiting Class G Fuse
- Temperature Rating: 150
- Type: Non-Indicating
- Voltage Rating: 600
- Wire size: 14 to 10 AWG Cu
All Littelfuse Class G fuse blocks offer snap-to-release DIN rail mounting and universal mounting holes. Class G fuse blocks are designed for use with time-delay current limiting Class G fuses.
- Features
- Meet requirements for branch circuit protection
- 1-hand release from DIN rail (snap to release)
- Universal mounting holes make for easy replacement
- Solid/stranded wire
