Littelfuse LFD2570-2

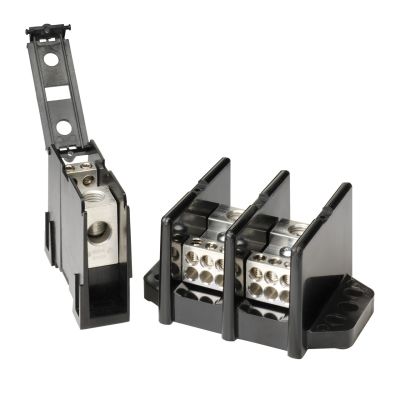

Littelfuse POWR-GARD POWR-BLOKS LFD2570-2 LD Series Splicer Terminal Power Distribution Block, 600 VAC, 175 A, 2 Poles, 14 to 2/0 AWG Wire, Thermoplastic
Distribution Blocks
7251123
LFD2570-2
Littelfuse
$0.00
/ ea
- Amperage Rating: 175
- Dimensions: 5.38 in L x 3.38 in W x 2.9 in H
- Fuse Type: Fast Acting
- Material: Thermoplastic
- Number of Poles: 2
- Primary Connections/Pole: 1
- Secondary Connection/Pole: 4
- Series: LD Series
- Short Circuit Current Rating: 200
- Type: Splicer Terminal
- Voltage Rating: 600
- Wire size: 14 to 2/0
POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover.
- Features
- Bolt-in mount
- Two thread cutting screws are furnished for each cover
- Covers are slotted for easy installation
- (1) 14 to 2/0 AWG line, (4) 14 to 4/0 AWG load rated wire range
- (1) box lug primary, (4) box lug secondary
