Littelfuse LD5592-1
Littelfuse POWR-BLOKS LD5592-1 LD Series Non-Indicating Power Distribution Block, 600 VAC, 760 A, 1 Poles, 6 AWG to 500 kcmil, 14 to 4 AWG Wire, Thermoplastic
Distribution Blocks
608248
LD5592-1
Littelfuse
$0.00
/ ea
- Amperage Rating: 760
- Color: Black
- Dimensions: 5.5 in H x 3.17 in W x 3.12 in D
- Fuse Type: Class J/T/RK1/RK5/G/CC
- Material: Thermoplastic
- Number of Poles: 1
- Primary Connections/Pole: 2
- Secondary Connection/Pole: 12
- Series: LD Series
- Short Circuit Current Rating: 50/100
- Type: Non-Indicating
- Voltage Rating: 600
- Wire size: 6 AWG to 500 kcmil, 14 to 4 AWG

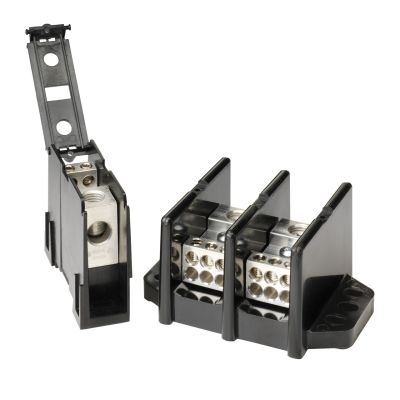

POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover.
- Features
- (2) 6 AWG to 500 kcmil line, (12) 14 to 4 AWG load wire size
