Littelfuse LD5552-3
Littelfuse POWR-GARD LD5552-3 POWR-BLOKS LD Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil Wire, Thermoplastic
Distribution Blocks
229901
LD5552-3
Littelfuse
$0.00
/ ea
- Amperage Rating: 380
- Color: Black
- Dimensions: 5.5 in H x 8.54 in W x 3.12 in D
- Material: Thermoplastic
- Number of Poles: 3
- Primary Connections/Pole: 1
- Secondary Connection/Pole: 12
- Series: POWR-BLOKS LD
- Voltage Rating: 600
- Wire size: 4 AWG to 500 kcmil

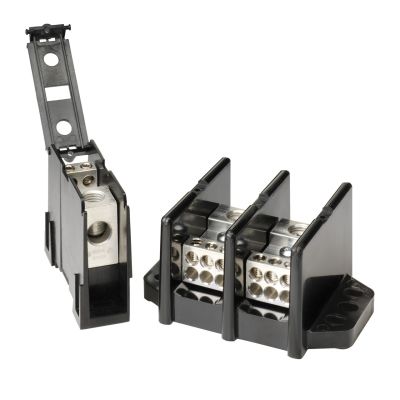

PWR DIST BLK (REPLACED BY LFD55523Z). POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover. Applications: Typical applications include heating, air conditioning and refrigeration systems, elevator systems, material handling equipment, control panels, motor controls, switchgear, and anywhere power needs to be distributed to more than one load.
- Features
- Fixing junction tap-off point
- Bolt-in mount
- 4 AWG to 500 kcmil aluminum line, 14 to 2/0 AWG aluminum load
- Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools, or other conductive material
- They also protect personnel from accidentally contacting energized connectors
- To order protective covers, match the number of poles for the block to the cover
- Flammability rating UL 94 V-0
- (1) 3/8 in hex lug line, (12) 5/32 in hex lug load
- 375 lb-in torque line, 40-50 lb-in torque load
- (1) lug primary, (12) lug secondary
