Littelfuse LD2970-1
Littelfuse POWR-GARD POWR-BLOKS LD2970-1 LD Series Power Distribution Block, 600 VAC, 175 A, 1 Poles, 14 to 2/0 AWG Wire, Thermoplastic
Distribution Blocks
610385
LD2970-1
Littelfuse
$0.00
/ ea
- Amperage Rating: 175
- Color: Black
- Dimensions: 2.88 in H x 1.13 in W x 1.78 in D
- Material: Thermoplastic
- Number of Poles: 1
- Primary Connections/Pole: 1
- Secondary Connection/Pole: 4
- Series: LD Series
- Voltage Rating: 600
- Wire size: 14 to 2/0

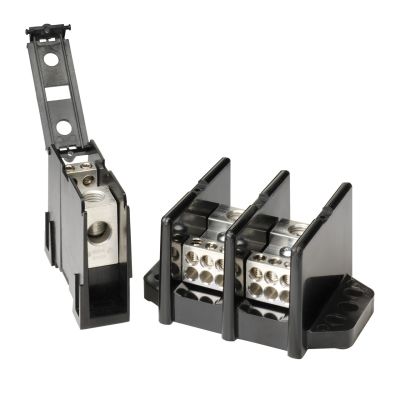

POWR-BLOKS power distribution blocks offer a safe, convenient way of splicing cables, providing a fixed junction tap-off point or splitting primary power into secondary circuits. LX2XXX-DIN series offers integral DIN-Rail mount and an optional hinged safety cover.
- Features
- Optional power distribution block covers provide protection against accidental shorting between poles caused by loose wires, tools or other conductive material
- They also protect personnel from accidentally contacting energized connectors
- Fixing junction tap off point
- 14 to 2/0 AWG copper line, 14 to 4 AWG copper load
- 35 to 120 in-lb torque line, 35 in-lb torque load
- 3/16 in hex lug line
- Bolt-in mount
- (1) lug primary, (4) slotted lug secondary
