Littelfuse L60030M-2SQDINR
Littelfuse POWR-GARD L60030M-2SQDINR L600M-DINR Releasable Midget Fuse Block, 600 VAC/VDC, 30 A, 14 to 10 AWG Wire, 2 Poles
Distribution Blocks
7417572
L60030M-2SQDINR
Littelfuse
$0.00
/ ea
- Amperage Rating: 30
- Class: CC
- Connection Type: Screw
- Dimensions: 3.345 in H x 1.5 in W x 1.4 in D
- Fuse Diameter: 10
- Fuse Length: 38
- Material: Thermoplastic
- Mounting Type: DIN Rail
- Number of Poles: 2
- Series: L600M-DINR
- Suitable For Use With: BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse
- Temperature Rating: 125
- Type: Releasable
- Voltage Rating: 600
- Wire size: 14 to 10

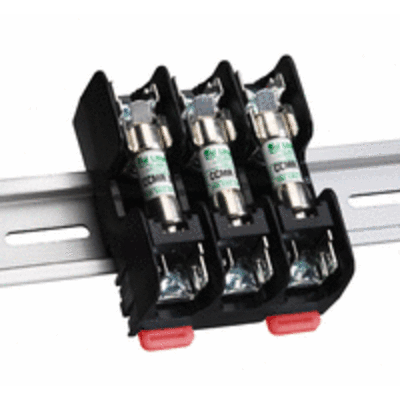

Littelfuse DIN series midget fuse blocks have integral DIN rail mounting capabilities that allow secure mounting to 35mm DIN rails. New releasable mechanism allows installation and removal of block without removing adjacent components on DIN rail. Electrical panel builders and machine builders no longer need to use mounting adapters, saving assembly time and related costs.
- Features
- Spring-free mechanism allows for easy installation and removal
- Space saving design
- Universal mounting holes for easy replacement
- One hand release from DIN rail optional
- Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
- Clip design reduces resistance and heat
- 1200 VAC minimum dielectric strength
- Tin plated copper alloy clip/terminals, copper box lug, zinc plated steel pressure plate
- Integral DIN rail mounting reduces assembly time
- Quick connect terminals accommodate side or top connection
