Eaton Bussmann Inc. PDB371-1

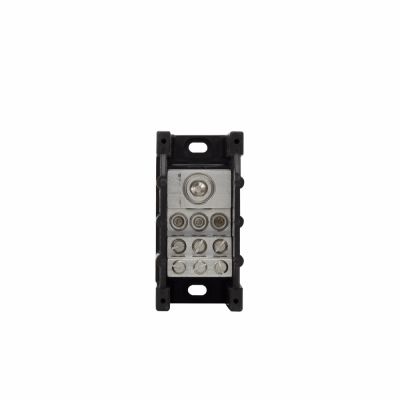

Bussmann PDB371-1 Barrier High SCCR Power Distribution Block, 600 VAC/VDC, 310 A, 1 Pole, 4 AWG to 350 kcmil Cu Line, (6) 12 to 2 AWG, 12 to 1/0 AWG Cu Load, 6 to 1/0 AWG, 12 to 4 AWG Wire, Aluminum/Phenolic
Distribution Blocks
6951944
PDB371-1
Eaton Bussmann Inc.
$0.00
/ ea
- Amperage Rating: 310
- Dimensions: 3.38 in L x 1.96 in W x 3.32 in H
- Finish: Tin Plated
- Fuse Type: Class CC/G/J/T
- Material: Aluminum/Phenolic
- Number of Poles: 1
- Primary Connections/Pole: (1) Box Lug
- Secondary Connection/Pole: (9) Box Lug
- Series: PDB
- Short Circuit Current Rating: 200/100
- Type: Barrier High SCCR
- Voltage Rating: 600
- Wire size: 4 AWG to 350 kcmil Cu Line, (6) 12 to 2 AWG, 12 to 1/0 AWG Cu Load, 6 to 1/0 AWG, 12 to 4 AWG
Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310A, Power distribution block, Single-pole, SCCR: 200 kA (6 To 1/0 AWG), 100 kA (12 To 1/0 AWG), Panel, Tin-plated aluminum connectors
- Features
- IP20 finger safe enclosure
- PDBs are often an assembly's lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
- By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
- Panel mounting
- 175/400 A class CC/G/J/T fuse
