Littelfuse LLSRK1.12

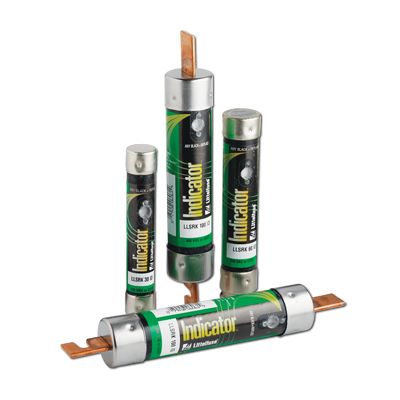

Littelfuse POWR-GARD POWR-PRO LLSRK1.12 Time Delay Fuse, 1.12 A, 600 VAC/300 VDC, 20/200 kA Interrupt, RK1 Class, Cartridge Body
Class RK1 Fuses
7039046
LLSRK1.12
Littelfuse
$0.00
/ ea
- Amperage Rating: 1.12
- Body Size: 13/16 in Dia x 5 in L
- Body Type: Cartridge
- Class: RK1
- Element: Dual
- Indicating/Non-Indicating: Non-Indicating
- Interrupt Rating: 20/200
- Mounting Type: Holder
- Rejection/Non-Rejection: Rejection
- Series: LLSRK
- terminal type: Clip
- Voltage Rating: 600 VAC/300 VDC
RK1 fuses are extremely current-limiting fuses meaning they greatly reduce or eliminate damage to circuits and equipment under short-circuit conditions. Replacing existing Class H, K and RK5 fuses with RK1 fuses is one of the easiest ways to immediately improve the protection of plant workers and equipment.
- Features
- Extremely current limiting
- Current limiting design often permits use of readily available, less costly equipment
- Excellent time delay
- 200 kA at 600 VAC, 20 kA at 300 VDC interrupt rating
