Panduit PUP6004BU-W
Panduit PUP6004BU-W TX6000 Enhanced Type CMP Cat 6 Plenum Cable, 80 VAC, (4 Pairs) 23 AWG U/UTP Bare Copper Conductor, 1000 ft L
Category 6 Cable
7274297
PUP6004BU-W
Panduit
$0.00
/ ft
- Conductor size: 23
- Conductor Type: U/UTP Bare Copper
- Insulation Material: FEP/Polyolefin
- Jacket Color: Blue
- Jacket Material: PVC
- Length: 1000
- Number of Conductors: 4 Pairs
- Outside Diameter: 0.233
- Series: TX6000™ Enhanced
- Temperature Rating: -4 to 140
- Type: Type CMP Cat 6 Plenum
- Voltage Rating: 80

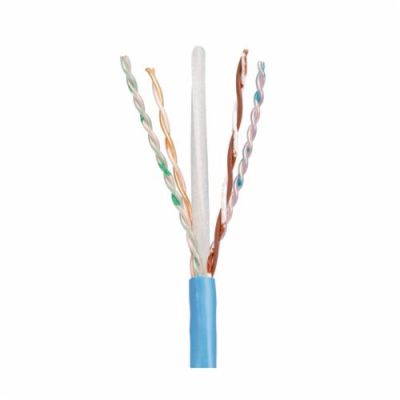

The TX6000 Enhanced Cat 6 U/UTP copper cable is constructed of 23 AWG copper conductors with FEP/HDPE insulation. The conductors are twisted in pairs and separated by a cross divider. All four pairs are surrounded by a PVC flame-retardant jacket. The blue, plenum (CMP) cable is supplied 1000 feet (305 meters) to an easy pay-out carton.
- Features
- Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap
- Cable supplied in an easy payout reel-in-a-box
- Twisted in pairs, separated by an integrated pair divider, and protected by a low smoke
- 25 lbf (110 N) maximum installation tension
- Low smoke flame retardant PVC jacket
