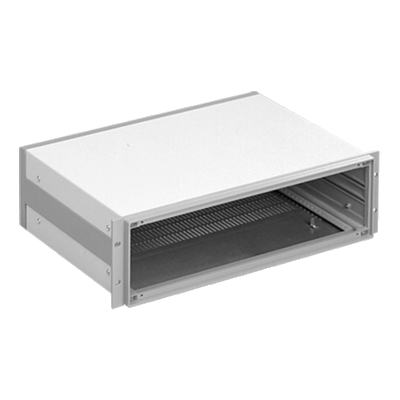

nVent Hoffman ERC4U4843
Hoffman ERC4U4843 DEC1 Desktop Case, For Use With 19 in Rack Cabinets, Aluminum, Light/Stone Gray
Horizontal and Vertical Managers
1554670
ERC4U4843
nVent Hoffman
$0.00
/ ea
- Color: Light/Stone Gray
- Dimensions: 17.1 in H x 19 in W x 7 in D
- Finish: Textured
- Material: Aluminum
- Series: DEC1
- Suitable For Use With: 19 in Rack Cabinets
19 in Rack Mtg/Desktop Case 4U, Bulletin DEC1 (Electronic Cabinets and Cases), Size/Dims: 177x483x435mm, Material/Finish: Alum/Steel
- Features
- Desktop cases house circuit boards and other electronic equipment in a rigid framework with easy front and rear access
- One-piece aluminum die cast front bezel and rear bezel are connected front-to-back with aluminum extrusions to form a rigid structural framework
- Sides on 3U and 4U tall cases are the aluminum front-to-back extrusions
- The 6U tall case has two aluminum extrusions with a steel middle panel on each side
- Covers are 1 mm steel and have grounding provisions
- Removable top and bottom covers attach directly to case framework for maintenance convenience
- Bottom cover has multiple rows of holes for ventilation
- Front bezel includes mounting provisions for 19 in rack mounting as well as mounting for front panel options for application flexibility
- Top and bottom of framework have mounting provisions for optional support rails for application flexibility
- Mounting holes are spaced on 10 mm centers front to back
- Case framework is assembled for quick installation
- Mounting hardware for optional front and rear panels are included with case for installation convenience
