Federal LP3M-012-048A
Federal Signal StreamLine LP3M-012-048A LP3M Low Profile Strobe Light, 12 to 48 VDC, Strobe Tube Lamp, Amber, Surface Mount, ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed, 4X/IP66/IP69K NEMA Rating
Signaling Beacons
6784080
LP3M-012-048A
Federal
$0.00
/ ea
- Amperage Rating: 0.44 to 0.1
- Average Life: 7000
- Color: Amber
- Diameter: 3-1/8
- Dimensions: 3.13 in W x 3.13 in D x 5.82 in H
- Flash Rate: 80
- Housing Material: Polycarbonate
- Lamp Type: Strobe Tube
- Light Output: 175000
- Mounting Type: Surface
- Nema Rating: 4X/IP66/IP69K
- Series: LP3M
- Shape: Cylindrical
- Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|CSA Certified|CE Certified|UL Listed
- Temperature Rating: -31 to 150
- Type: Low Profile
- Voltage Rating: 12 to 48

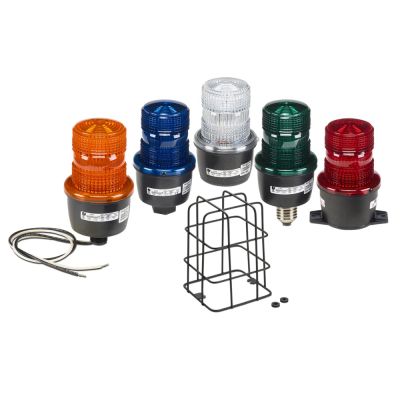

StreamLine Low Profile Strobe Light, 12-48VDC, Male Pipe Mount, Amber - Available in 12-48VDC, 120VAC and 240VAC, LP3E available in 120VAC only. Surface mount (S), Edison mount (E), T-mount (T), integrated 1/2-inch NPT pipe mount (P) or 1/2-inch NPT male pipe mount (M). Five lens colors: Amber, Blue, Clear, Green and Red. Screw-on lens provides easy access. Conformal coated PCB. Type 4X, IP66 enclosure. IP69K compliant (excludes models LP3E and LP3T). PLC and triac compatible. CSA Certified. UL and cUL Listed.
- Features
- PLC and triac compatible
- Screw-on lens provides easy access
- StreamLine® strobes feature high quality, long life strobe tubes which are designed to reduce tungsten build-up for longer lamp maintenance cycles
- High quality dry electrolyte capacitor used in streamline products runs cooler than those used in many competitive strobes, resulting in a more reliable product that won't fail due to overheating
- LP3M features a 1/2 in NPT male pipe with locknut mount and 18 in wire leads
