Federal AV1-LED-120A
Federal Signal AV1-LED-120A Audio/Visual Combination Signal Economical Warning Light, 120 VAC, LED Lamp, 85 dB Sound, Indoor/Outdoor, Surface Mount, Amber Lens, cUL Listed|UL Listed
Signaling Beacons
7120693
AV1-LED-120A
Federal
$0.00
/ ea
- Amperage Rating: 0.03
- Average Life: 50000
- Diameter: 5.76
- Dimensions: 5.76 in W x 5.76 in D x 6.48 in H
- Flash Rate: 60/75
- Indoor/Outdoor: Indoor/Outdoor
- Lamp Type: LED
- Lens Color: Amber
- Material: Polycarbonate
- Mounting Type: Surface
- Nema Rating: NEMA 3R
- Series: AV1-LED
- Sound Level: 85
- Sound Type: Audible
- Specifications Met: cUL Listed|UL Listed
- Temperature Rating: -31 to 150
- Type: Audio/Visual Combination Signal Economical
- Voltage Rating: 120

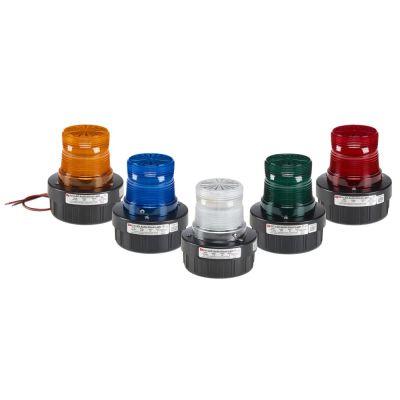

LED Flashing Combination Audible/Visual Signal, 120VAC, Amber - Available in 24VDC and 120VAC. 50,000 hour LED light source. Surface mount, integrated 1/2-inch NPT pipe mount and 4-inch electrical box mount. Five lamp/lens colors: Amber, Blue, Clear, Green and Red. Twist-off lens for easy access. Internal buzzer produces 85 dBA at 10 feet (95 dBA at 1m). PLC compatible. Type 3R enclosure. UL and cUL Listed.
- Features
- Surface mount, integrated 1/2 in NPT pipe mount and 4 in electrical box mount
- Twist-off lens for easy access
- PLC compatible
- NEMA 3R enclosure
- Combination flashing led and buzzer
