Federal AV1-LED-024C

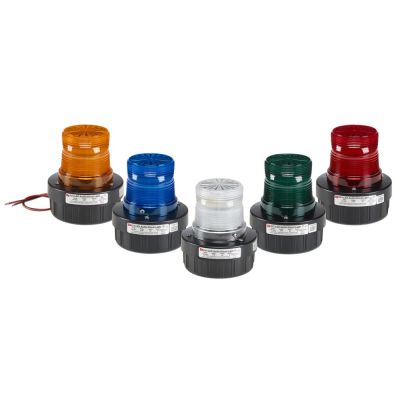

Federal Signal AV1-LED-024C Audible/Visual Cylindrical Flashing/Buzzer Combination Light Sounder With Integrated Buzzer, 24 VDC, LED Lamp, 85/95 dB Sound, Indoor/Outdoor, Surface Mount, Clear Lens, cUL Listed|UL Listed
Signaling Beacons
7652109
AV1-LED-024C
Federal
$0.00
/ ea
- Amperage Rating: 0.27
- Average Life: 50000
- Diameter: 5.76
- Dimensions: 5.76 in W x 5.76 in D x 6.48 in H
- Flash Rate: 60/75
- Indoor/Outdoor: Indoor/Outdoor
- Lamp Type: LED
- Lens Color: Clear
- Material: Polycarbonate
- Mounting Type: Surface
- Nema Rating: NEMA 3R
- Series: AV1-LED
- Sound Level: 85/95
- Specifications Met: cUL Listed|UL Listed
- Temperature Rating: -31 to 150
- Type: Audible/Visual Cylindrical Flashing/Buzzer
- Voltage Rating: 24
Federal Signal Combination Light Sounder, Audible/Visual Cylindrical Flashing/Buzzer, Series: AV1-LED, 24 VDC, 0.27 A, 5.76 in Diameter, LED Lamp, Clear Lens, 85/95 dB Sound Level, Indoor/Outdoor Indoor/Outdoor, Specifications Met: cUL Listed|UL Listed, 60/75 fpm Flash, 50000 hr Average Life, Surface Mounting, NEMA 3R NEMA Rating, -31 to 150 deg F, Polycarbonate, 5.76 in W x 5.76 in D x 6.48 in H Dimensions
- Features
- Surface mount, integrated 1/2 in NPT pipe mount and 4 in electrical box mount
- Twist-off lens for easy access
- PLC compatible
- NEMA 3R enclosure
- Combination flashing led and buzzer
