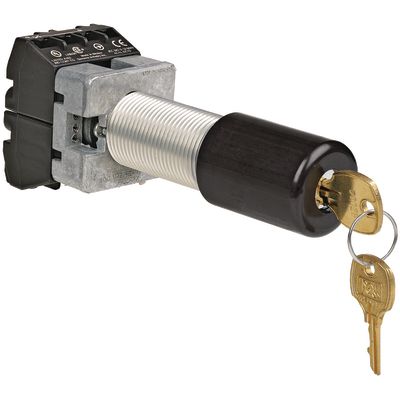

Hubbell Killark GO8-2A3F22D N34

Killark GO8-2A3F22D N34 G Series 1-Pole Long Selector Switch, 1-1/4 in H x 1-1/4 in W x 6-3/32 in L, 1NC-1NO Contact, Keyed Operator
Zone Rated Hazardous Location
7417231 GO8-2A3F22D N34
Hubbell Killark
$0.00 / ea

Hubbell Killark GO8-2A3F22D N34
  • Actuator: 2-Position Key Selector Switch Operator
  • Contact Configuration: 1NC-1NO
  • Contact Mode: Maintained
  • Contact Rating: 10 A at 600 VAC
  • Legend: OFF-ON
  • Material: Aluminum
  • Number Of Positions: 2
  • Operator Type: Keyed
  • Series: G Series
  • Size: 1-1/4 in H x 1-1/4 in W x 6-3/32 in L
  • Type: 1-Pole Long
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
QTY
Add to Wishlist
  • Features
  • 60 A inrush at 120 VAC, 30 A inrush at 240 VAC, 15 A inrush at 480 VAC, 12 A inrush at 600 VAC, 0.55 A inrush at 125 VDC and 0.275 A inrush at 250 VDC contact rating
  • 6 A breaking at 120 VAC, 3 A breaking at 240 VAC, 1.5 A breaking at 480 VAC, 1.2 A breaking at 600 VAC, 0.55 A breaking at 125 VDC and 0.275 A breaking at 250 VDC contact rating
  • 10 A carrying at 120 VAC, 10 A carrying at 240 VAC, 10 A carrying at 480 VAC, 2.5 A carrying at 125 VDC and 2.5 A carrying at 250 VDC contact rating
  • Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel
  • Threaded bodies are all 3/4-14 NPSM thread
  • Control stations can be grouped into a single assembly thus reducing installation time and cost
  • Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters
  • Additional relays, timers, terminal blocks or other equipment may also be internally mounted to provide a single centralized control unit
  • G series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB and GCS series boxes and B7, Y7 starter enclosures
  • Keyed different with key removal in left position
