Hubbell Killark GO22-GR12D

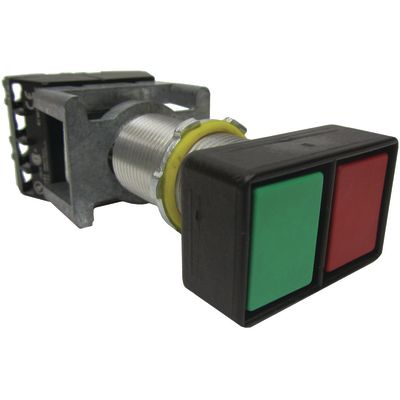

Killark GO22-GR12D G Series 2-Pole Short Pushbutton Operator With Nameplate, 1-5/16 in H x 2 in W, 1NC-1NO Contact, SPST/Momentary Contact, Double Button Operator, Green/Red
Zone Rated Hazardous Location
4250118
GO22-GR12D
Hubbell Killark
$0.00
/ ea
- Color: Green/Red
- Contact Configuration: 1NC-1NO
- Contact Mode: Center/Right
- Contact Type: SPST/Momentary
- Enclosure Type: NEMA 7C/7D/9E/9F/9G
- Environmental Conditions: -25 to 40 deg C Ambient Temperature
- Legend: BLANK/START/STOP
- Material: Aluminum
- Operator Type: Double Button
- Series: G Series
- Size: 1-5/16 in H x 2 in W
- Type: 2-Pole Short
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
- Features
- Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel
- Threaded bodies are all 3/4-14 NPSM thread
- Control stations can be grouped into a single assembly thus reducing installation time and cost
- Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters
- Additional relays, timers, terminal blocks or other equipment may also be internally mounted to provide a single centralized control unit
- Inrush 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC, 0.55 A at 125 VDC and 0.275 A at 250 VDC
- Breaking - 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC, 0.55 A at 125 VDC and 0.275 A at 250 VDC
- Carrying - 10 A at 120 VAC, 10 A at 240 VAC, 10 A at 480 VAC, 10 A at 600 VAC, 2.5 A at 125 VDC and 2.5 A at 250 VDC
