Hubbell Killark FXCS-5B3

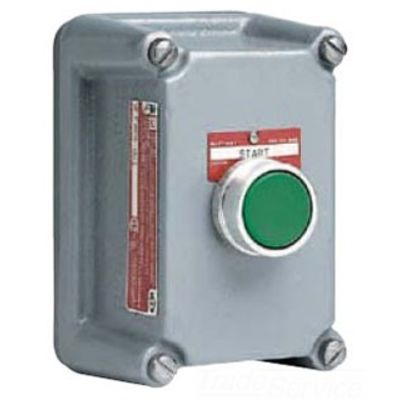

Killark SEAL-X FXCS-5B3 Feed-Through Factory Sealed Single Pushbutton Control Station With Splice Box, Cover, 600 VAC, 1NC-1NO Contact, 1 Operators, NEMA 3/7CD/9EFG NEMA Rating
Zone Rated Hazardous Location
7055435
FXCS-5B3
Hubbell Killark
$0.00
/ ea
- Actuator: Pushbutton
- Color: Black/Gray
- Connection Type: 3/4 in Hub
- Contact Configuration: 1NC-1NO
- Contact Mode: Momentary
- Dimensions: 6-13/16 in H x 3-11/16 in W x 4-13/32 in D
- Finish: Epoxy Powder Baked
- Material: Copper-Free Aluminum Alloy
- Nema Rating: NEMA 3/7CD/9EFG
- Number of Operators: 1
- Number of Poles: 1
- Series: FXCS
- Type: Feed-Through Factory Sealed Single
- Voltage Rating: 600
FXCS Series - Aluminum Feed-Thru Momentary Contact Single Push Button Control Station - Factory Sealed - Black Button With Nameplate To Be Specified - Hub Size 3/4 Inch - 1NO/1NC Contact Rating
- Features
- Elimination of external sealing requirements
- Lower installation cost
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- Stainless steel captive screws for cover assembly
- Ground boss for grounding in the splice box
- Device bodies and covers are cast copper-free aluminum alloy
- Operating shaft in both pushbuttons and selector switches are stainless steel
- Pushbutton, selector switches and pilot light bodies are copper-free aluminum
- 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC inrush, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC breaking, 10 A at 120 VAC, 10 A at 240 VAC, 10 A at 480 VAC carrying contact rating
- 0.55 A at 125 VDC, 0.275 A at 250 VDC inrush, 0.55 A at 125 VDC, 0.275 A at 250 VDC breaking, 2.5 A at 125/250 VDC carrying
