Hubbell Killark FXCS-4S2A1

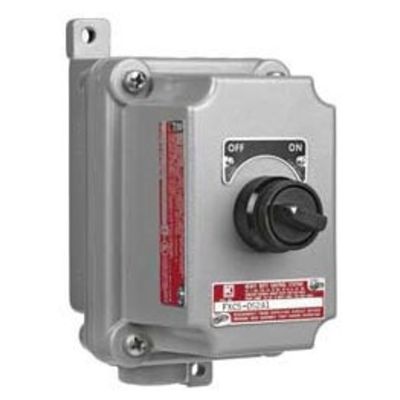

Killark FXCS-4S2A1 FXCS SEAL-X Factory Sealed Feed-Through Standard Selector Switch Control Station With Splice Box, Cover, 600 VAC, 1NC-1NO Contact, NEMA 3/7CD/9EFG NEMA Rating
Zone Rated Hazardous Location
7667725
FXCS-4S2A1
Hubbell Killark
$0.00
/ ea
- Actuator: 2-Position Selector Switch
- Contact Configuration: 1NC-1NO
- Contact Mode: Maintained
- Dimensions: 6-13/16 in H x 3-11/16 in W x 4-13/32 in D
- Legend: OFF/ON
- Material: Copper-Free Aluminum
- Nema Rating: NEMA 3/7CD/9EFG
- Number of Poles: 1
- Series: FXCS SEAL-X™
- Type: Factory Sealed Feed-Through Standard
- Voltage Rating: 600
FXCS Series - Aluminum Feed-Thru Maintained Contact 2-Position Selector Switch Control Station - Factory Sealed - "Off - On"/Blank Nameplate -Hub Size 1/2 Inch - 1NO/1NC Contact Rating
- Features
- 0.55 A at 125 VDC, 0.275 A at 250 VDC inrush, 0.55 A at 125 VDC, 0.275 A at 250 VDC breaking, 2.5 A at 125/250 VDC carrying
- Elimination of external sealing requirements
- Lower installation cost
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC inrush, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC breaking, 10 A at 120 VAC, 10 A at 240 VAC and 10 A at 480 VAC carrying
- Device covers are cast copper-free aluminum alloy
