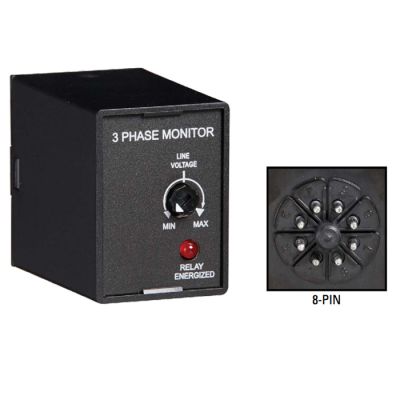

Littelfuse PLR480A

Littelfuse SSAC PLR480A 3-Phase Electro-Mechanical Voltage Monitoring Relay, 380 to 500 VAC, 8 Pin, SPDT 1 Form C Contact
IEC Electronic Protective Devices
7418809 PLR480A
Littelfuse
$0.00 / ea

Littelfuse PLR480A
  • Contact Configuration: SPDT 1 Form C
  • Dimensions: 2.39 in W x 1.78 in D x 3.2 in H
  • Frequency Rating: 50/60
  • Mounting Type: Plug-In/Socket
  • Number of Pins: 8
  • Series: PLR
  • terminal type: Octal Base Plug-In
  • Type: 3-Phase Electro-Mechanical
  • Voltage Rating: 380 to 500
Littelfuse SSAC Voltage Monitoring Relay, 3-Phase Electro-Mechanical, Series: PLR, 380 to 500 VAC, 50/60 Hz Frequency, SPDT 1 Form C Contact Configuration, 8 Pins, Plug-In/Socket Mounting, Octal Base Plug-In Terminal, 2.39 in W x 1.78 in D x 3.2 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Continuous monitoring, prevents 3-phase motor startup when undervoltage or phase loss condition is present
  • Industry standard 8-pin octal plug connection, eliminates need for special connectors
  • LED indication, quick visual indication of output status and correct phase sequence
