Littelfuse PGR-6100-120
Littelfuse POWR-GARD PGR-6100-120 Ground Fault and Insulation Relay, 120 VAC, <250 ms, 0 to 1 mA Analog Output, 1NO-1NC (2 Form C) Output Contact, 22 to 12 AWG Wire Clamping Terminal, DIN Rail/Surface Mount
IEC Electronic Protective Devices
7470350
PGR-6100-120
Littelfuse
$0.00
/ ea
- Analog Output: 0 to 1
- Dimensions: 3 in H x 3.9 in W x 4.5 in D
- Mounting Type: DIN Rail/Surface
- Response Delay: <250
- Series: PGR-6100
- Specifications: 1NO-1NC (2 Form C) Output Contact, 22 to 12 AWG Wire Clamping Terminal
- Voltage Rating: 120

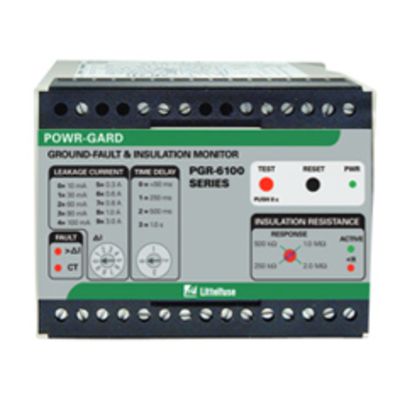

The PGR-6100 Ground-Fault; Insulation Relay is designed to provide basic protection for a motor, including ground fault protection and insulation monitoring. The fact that the PGR-6100 insulation monitoring relay has predictive as well as protective capabilities makes it unique. The ground-fault current and insulation resistance can be monitored using two separate meters. Two separate alarm contacts are also provided.
- Features
- Adjustable GF pickup (10 mA to 3 A) trip setting provides a wide range of low level protection and system coordination
- Adjustable insulation pickup (250 to 2 MOhm)- customizable insulation resistance set point for maximum protection
- Adjustable time delay (50 ms to 1 s) -adjustable trip delay for quick-protection and system coordination
- Output contacts two form C output contacts for ground fault and insulation resistance fault
- Two analog outputs indicate insulation resistance and ground fault current
- CT-loop monitoring alarms when CT is not connected
- Selectable fail safe or non-fail safe operating modes allows connection to shunt or undervoltage breaker coil
